For music lovers who want to enjoy large music libraries with a
dedicated server delivering Hi-Fi quality. The ZEN Mk3 represents new
value for money in digital audio performance
Highlights:
- New Custom Motherboard with reduced EMI
- Dual Ethernet Ports for LAN and Streamer with dedicated isolation transformers
- Dual-Linear Power Supply with ultra-low noise regulators and Nichicon MUSE Capacitors
- 8GB RAM with 4GB In-Memory playback
- Asymmetrical isolation feet inspired by the ZENith SE
- Ultra-low Noise USB Audio Output
- Medical-Grade Mains Filter
- New Generation Quad-core Intel CPU
Funktionsumfang:
- CD Ripper, NAS and Streamer
- Internetradio, Qobuz, Tidal, Radio Paradise, Spotify
- USB - Output
- Can be used as Roon Core (Optional)

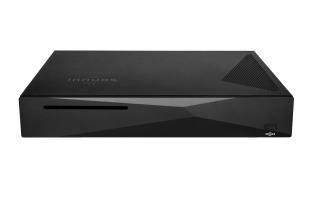

ZEN MK3
Dual-Linear Power Supply
The ZEN ensures a cleaner digital signal by reducing power noise. Through a dual-linear power supply, designed by Dr. Sean Jacobs, with ultra-low noise regulator design, Nichicon MUSE Capacitors and medical-grade mains filter, your music opens up and reveals new levels of realism.
Custom Motherboard
Our own custom-made Innuos motherboard is completely reworked for optimised audio performance. Sources of EMI have been removed and internal clocks optimised, resulting in a “blacker” music background and enhanced realism.
Ultra-low Noise Streamer Output
Dual-ethernet ports with isolation transformers provide an ultra-low noise network connection for your streamer, removing noise from the path and improving sound quality on all network Audio.
Anti-vibration Treatment
New asymmetrical isolation feet derived from our award-winning ZENith SE plus added chassis treatment help to combat harmful vibration that affect a clean audio Signal
In-Memory Playback
Now with twice the memory of the Zen Mk2, the Zen MK3 has 8GB RAM with 4GB dedicated memory. Music is loaded directly to memory for playback so that it doesn’t engage the hard drive, improving sound Quality.
Technische Daten:
Digital Output:
- USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
- Dedicated Ethernet Streamer Port
Connectivity:
- Ethernet: 2 x rear panel RJ45 – Bridged Gigabit Ethernet
- USB: 1x USB 2.0 (DAC), 1x USB3.0 (Backup)
Formats:
| CD Formats |
Red Book |
| Disc Compatibility |
CD, CD-R, CD-RW |
| Audio format for stored CDs |
FLAC (zero compression), WAV |
| Audio Formats Supported for streaming and playing |
WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs |
Sample Rates:
| Sample Rates |
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs |
| Bit Depths |
16bit, 24bit, 32bit
|
User Control Interfaces:
| Web Interface |
Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers |
| Mobile |
App for iPhone/iPad, Android and Windows 10 |
Hardware:
| CD/DVD drive |
TEAC Slot-loading drive |
| Storage |
1TB, 2TB, 4TB WD Red HDD |
| CPU |
Intel Quad Core N4200 |
| Memory/RAM |
8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback) |
Streaming and CD Storage:
| UPnP/DLNA |
Integrated UPnP Server |
| Streaming Services |
Qobuz, Tidal, Radio Paradise, Internet Radio |
| Roon Compatibility |
Roon Core and Roon Endpoint |
| Average CD Storage Time |
5 minutes |
| CD Metadata |
FreeDB, MusicBrainz, Discogs, GD3 |
| Compatible Music Systems |
Sonos Multi-room Wireless Music System |
| DLNA/UPnP compatible streamers |
| USB DACs complying to USB Audio Class 2 |
| USB DACs supporting DSD over DoP protocol |
| Selected USB DACs supporting Native DSD |
Requirements:
| Network |
Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates |
| Network router with at least one available ethernet port |
| Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal |
| Recommended App (USB Connection Only) |
Innuos Sense App, iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10) |
Power:
| Mains Supply |
230V AC / 115V AC – Internal Dual-Linear Power Supply |
| Power Consumption |
12W when idle, 15W peak |
Physical:
| Dimensions |
420mm x 340mm x 83mm (W x D x H) |
| Weight |
9,0 Kg |
| In the box |
Innuos ZEN Mk3 Music Server |
| Mains Cable |
| 2m Ethernet Cable |
| Getting Started leaflet |
