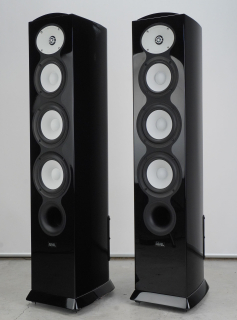

Ausstellungspaar in technisch einwandfreiem Zustand aus unserem Showroom mit Transportschaden ( nur kosmetischer Mangel - technisch einwandfrei - (siehe Bilder) vom autorisierten Fachhändler.
Auslaufmodell
Der Lautsprecher wurde komplett überprüft und vermessen. Technisch ist der Lautsprecher einwandfrei und klingt nach wie vor fantastisch.
Einzelstück / UVP 10000€
Farbe: Schwarz hochglanz
Zubehör: 4x Spikes, Originalverpackung
Tipp: Ideal als 3-Wege High End Centerlautsprecher im Heimkino hinter einer akustisch transparenten Leinwand
Klang: Der Allrounder schlecht hin! Absolut stimmiges authentisches Klangbild mit hoher Pegelfestigkeit! Herausragende Klangfarben!
Besonderheit:
- Beryllium Hochtöner und Ceramic Composite Treiber
- linearer Frequenzgang auf Achse mit wenig Korrekturgliedern in der Weiche
- herausragende Abstrahl-Charakteristik
The Revel F226Be joins our award-winning PerformaBe series as a compact floorstanding loudspeaker. As part of the PerformaBe loudspeaker line, the F226Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic Magnets.
F226BE Highlights
- 1-inch Beryllium Dome Tweeter
- 5th-generation Acoustic Lens Waveguide
- Deep Ceramic Composite (DCC) Cone Midrange and Woofers
- High-order Crossovers with Film Capacitors and Air Core Inductors
- Magnetically Attached Grilles
- 4 Premium High-gloss Finishes Available
The Revel F226Be joins our award-winning PerformaBe series as a compact floorstanding loudspeaker. As part of the PerformaBe loudspeaker line, the F226Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.
Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. Beryllium tweeters are the centerpiece of the Revel PerformaBe loudspeaker series.
The 5.25-inch (130mm) midrange and dual 6.5-inch (165mm) aluminum cone woofers utilize Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminum core. The deep ceramic layers sandwiching the aluminum core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance.
PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.
F226Be top panels are painted in stylish metallic black with raised electroform badging. The loudspeakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver.
Technische Daten:
- Type 3-way dual 6.5" floorstanding loudspeaker
- Low-frequency transducer Two 6.5" (165mm) Deep Ceramic Composite aluminum cones, with cast frames
- Midrange transducer 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame
- High-frequency transducer 1" (25mm) Beryllium dome, with acoustic lens waveguide
- Recommended amplifier power range 50 – 200 Watts RMS
- Frequency response 44 Hz - 40 kHz (-6dB)
- Low-frequency extension 33Hz (–10dB); 36Hz (–6dB); 48Hz (–3dB)
- Nominal impedance 8 ohms
- Sensitivity (2.83V/1m) 90 dB
- Crossover frequencies 260Hz; 2.1kHz
- Enclosure type Bass-reflex via front-mounted port
- Inputs Dual gold-plated binding posts with shorting straps
- Dimensions – with grille (H x W x D) 41.3” x 9.8” x 13.7” (1050mm x 249mm x 347mm)
- Cabinet Weight 58.0 lb (26.4 Kg)
- Grille Weight 0.8 lb (0.4 Kg)
