| Model |

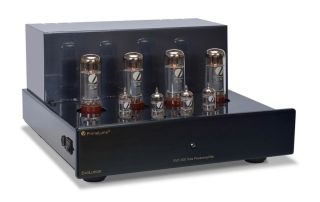

EVO 200-4 for EL34 |
| Power Ultra-Linear |
44 per channel Stereo
88 Watts Mono |
| Frequency Response |
12 Hz – 65 kHz +/- 1 dB
10 Hz – 95 kHz +/- 3 dB |
| THD with AABB |
< 0.1% @ 1W; less than 2% at rated power Stereo
< 0.17% @ 1W; less than 2% at rated power Mono |
| S/N Ratio |
92 dB Stereo / 93 dB Mono |
| Input Impedance |
100 kOhm |
| Input Sensitivity |
870 / 880 mV for rated power at maximum volume |
| Maximum Gain |
26.5 dB / 29 dB (EL34 / KT88) |
| Power Consumption |
280 Watts |
| Weight |
Net weight: 50.6 lbs / 23 kg
Shipping Weight: 61.6 lbs / 28 kg |
| Dimensions |
15.9" x 14.4" x 8.1" / 405 x 365 x 205 mm (L x W x H) |
| Shipping Dimensions |
22.7" x 18.4" x 12.4" / 577 x 468 x 315 mm (L x W x H) |
| Inputs |
1 pair Stereo RCA, 1 piece Mono RCA |
| Outputs |
4, 8 & 16 / 2, 4 & 8 Ohm Speaker Taps |
| Tube Complement |
4 x EL34, 4 x 12AU7 |
| Damping Coefficient |
4 KD (1 kHz) |
| Remote Control |
- |
