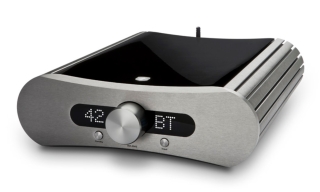

GATO DIA-250S
Vollverstärker 2 x 250W Class D mit 24bit/196khz DAC und Bluetooth incl. FB RC-3
Aussteller mit leichten Machen.
Anschlüsse
- Balanced analogue inputs 1 pair gold plated XLR Neutrik
- Unbalanced analogue inputs 2 pairs of gold plated RCA Stereo
- Digital inputs 1 pc USB type B, 1 pc Toslink, 1 pc RCA, 1 pc aptX Bluetooth
- Balanced analogue outputs 1 pair gold plated XLR Neutrik
- Unbalanced analogue outputs 1 pair of gold plated RCA Stereo
- Speaker output 2 pairs of gold plated safety banana
- Trigger, 12 V 1 pc mini jack
Technische Daten
- Output power 2x 250 W / 8 O - 2x 500 W / 4 O
- Frequency response 20 Hz-20 kHz - 0.5 dB, and 2 Hz-70 kHz - 3 dB
- Total Harmonic Distortion < 0,01% at rated power
- Signal to noise ratio > 110 dB
- Line out maximum level 13V balanced, 6,5V unbalanced
- Total Harmonic Distortion < 0,001% pre out
- Input impedance 20 kO RCA or 40 kO Balanced
- Line output impedance 75 O
- Voltage gain 26 dB (+10 db headroom)
- Recommended speaker load 4 -16 O
- Power Requirements 115 VAC/230 VAC, 50 Hz/60 Hz, 1000W max
- Power consumption stdb/idle/max < 1W/23W/1000W
- Dimensions (WxHxD) 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5"
- Weight 10 kg / 22 lb
