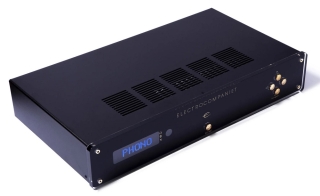

ECI-80D - Stereo Vollverstärker mit DAC, Phono & Bluetooth
Der kleinste Vollverstärker der EC Classic-Linie nicht nur für den jungen Musikhörer. Das umfassend ausgestattete Geräte besitzt einen Phono MM Eingang, Digitale Eingänge, eine Bluetooth HD Schnittstelle sowie die Möglichkeit über Kopfhörer über das Kabel oder per Bluetooth Musik zu genießen.
Schon der kleinste Vollverstärker leistet 150W (4ohm) besitzt neben Phono MM auch zwei analoge Cinch und 5 digitale Eingänge zum Anschluss vieler Quellen. Vom Handy oder Tablet kann einfach über Bluetooth Musik auf den ECI-80D gestreamt werden.
The ECI 80D is our brand new, entry-level integrated amplifier. The new ECI 80D offers 2 x 80 Watts into 8 Ohms, using an in-house developed Class A/B Amplifier.
We have equipped it with a built-in RIAA pre-amplifier for your LP player (MM cartridge support), 2-way Bluetooth HD for both streaming from your iOS, Android unit, Mac or PC, and also HD streaming to your High-end headphones. And of course a 5-input DAC (3 Toslink, 2 COAX)
Features:
Built-in phono preamplifier with MM cartridge support enables you to connect your LP player directly to the ECI80D and enjoy your record collection.
Headphones-out: The ECI 80D has a built-in double headphones amplifier, enabling cabled headphone listening to 2 units simultaneously!
HD Bluetooth streaming: The ECI 80D supports HD Bluetooth streaming from your phone, tablet, PC or MAC. It also supports streaming to HD wireless Bluetooth headphones!
The ECI80D comes with a remote control, enabling you to control all its functions right from the comfort of your chair, sofa or couch.
Technische Daten:
PREAMPLIFIER:
Input impedance: 75 kOhms
Noise floor:< -130dB
THD+N: < 0.002%
Frequency response (-3dB): 1 – 150 kHz
Volume adjustment range: - 110dB to +15 dB
OUTPUT AMPLIFIER:
THD+N: < 0.005%
Output power (into 8 Ohms): 2 x 80W
Output power (into 4 Ohms): 2 x 150W
Damping factor (8 Ohms load): > 300
Frequency response (-3dB): 1 – 150kHz
SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB
Gain: 25 dB
Protection: DC, overload, temperature
RIAA PHONO:
Pickup support: Moving Magnet
Gain: 40 dB @ 1kHz
Input impedance: 47 kOhms || 100pF
RIAA correction accuracy: +/-0.1dB, 25-20kHz
Subsonic filter: -3 dB @ 14 Hz
THD: < 0.001%
SNR: 83 dB (A-weighted)
Overload margin: 30dB @ 1kHz
HEADPHONE AMPLIFIER:
THD+N: < 0.001%
Load impedance single output in use: > 16 Ohms
Load impedance both outputs in use: > 32 Ohms
Max output power (into 16 Ohms load): 0.4W
Max output voltage swing: +/-8V peak
Output impedance: 10 Ohms
Protection: DC, overload
DIGITAL & STREAMING:
Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit
Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit
Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD
CONNECTIVITY:
Digital inputs: 2 coaxial, 3 optical
Analog inputs: 2 RCA
Analog preamplifier output: 1 RCA
Service port: 1 USB
12V trigger: 1 input, 1 output
Phono MM: 1 RCA
Headphone outputs: 3.5mm jack + 6.35mm jack
Speaker outputs: 1 pair binding posts
WEIGHT & DIMENSIONS:
Weight: 8 kg – 17.6 lbs
Width: 470 mm – 18.5 inches
Depth: 262 mm – 10.3 inches
Height: 90 mm – 3.5 inches
